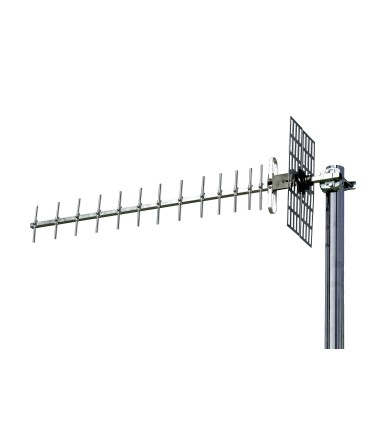

ACY15L

High-gain, broadband, directional antenna

MECHANICAL PARAMETERS

Support boom material: aluminium alloy
Element material: aluminium alloy
Reflector: aluminium alloy
Clamp: aluminium alloy
Antenna dimension: 1005x420x410 mm
Antenna weight: >950 g
Ambient temperature: - 40 °C - +70 °C
Maximum wind speed: 30 m/s

Read moreShow less
Reference:
Description

High-gain, broadband, directional antenna

Read moreShow less
Product Details

Data sheet

Frequency range
GSM900
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
