EHD913

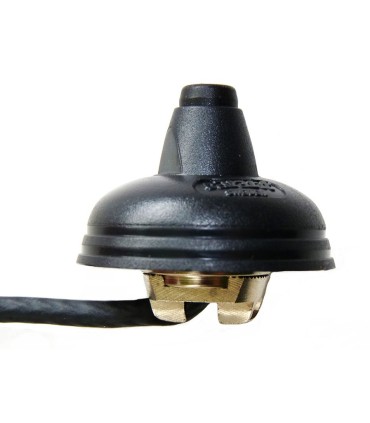

EHD BASE

MECHANICAL PARAMETERS

Screw thread size: M3 mm

Screw thread type: internal

Connector: FME - fm (kábellel)

Color: black

Height: 24 mm

Base diameter: Ø 35 mm

Cable: 0,8 Low Loss m

Mounting diameter: Ø 19 mm

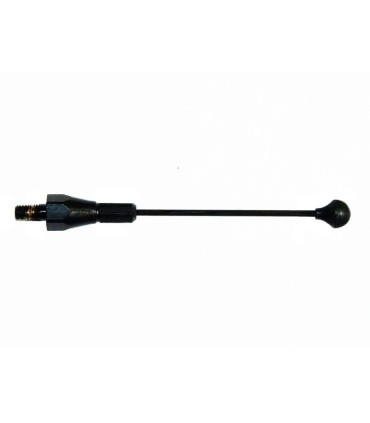

913 RADIATOR

MECHANICAL PARAMETERS

Screw thread size: M3 mm

Screw thread type: external

Color: black

Radiator length: 60 mm

ANTENNA BASES, RADIATORS

Read moreShow less
Reference:
Description

EHD BASE

MECHANICAL PARAMETERS

Screw thread size: M3 mm

Screw thread type: internal

Connector: FME - fm (kábellel)

Color: black

Height: 24 mm

Base diameter: Ø 35 mm

Cable: 0,8 Low Loss m

Mounting diameter: Ø 19 mm

913 RADIATOR

MECHANICAL PARAMETERS

Screw thread size: M3 mm

Screw thread type: external

Color: black

Radiator length: 60 mm

ANTENNA BASES, RADIATORS

Read moreShow less
Product Details

Data sheet

Frequency range
GSM900
Characteristic
Omnidirectional
Type
Mobil antenna (attached on vechicles)
ELECTRICAL PARAMETERS
