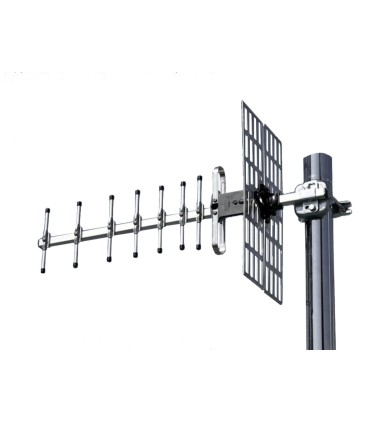

ACY9L

Extended network range, long service life

MECHANICAL PARAMETERS

Support boom material: aluminium alloy
Element material: aluminium alloy
Reflector: aluminium alloy
Mounting bracket material: stainless steel
Antenna dimension: 535x175x40 mm
Antenna weight: >530 g
Ambient temperature: - 40 °C - +70 °C
Maximum wind speed: 25 m/s

Read moreShow less
Reference:
Description

The ACY9 diectional antenna is designed for enhanced broadband directional RF radiation in the frequency range 800-960 MHz. It meets rigorous criteria for high performance and extended operating range in fixed wireless networks.
Long service life is ensured by high-quality materials and a moulded waterlight balun.
The Carant ACY service of outdoor wall-mounted antennas has been developed specifically for fixed wireless networks. ACY antennas have demonstrated outstanding performance and reliability worldwide, in commercial networks from leading international suppliers of telecommunications equipment.
Carant antennas support all major standards used in fixed wireless networks.

Benefits
·         Excellent performance at very cometitive price
·         Long service life
·         DC-frounding to protect subscriber equipment
·         Easily installed an aligned
·         Ready to use, no assembly required

Read moreShow less
Product Details

Data sheet

Frequency range
GSM900
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
