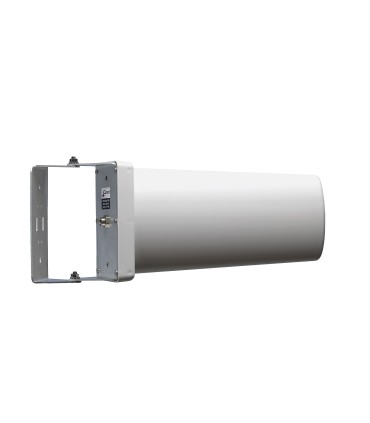

AGY12

Broadband, directional UMTS antenna


MECHANICAL PARAMETERS

Element material: copper
Reflector:
aluminium/copper
Radom material:
 ABS
Radom parameters:
347x132x75
Clamp:
wall-mounted
Antenna dimension:
347x132x75mm
Antenna weight:
>315 g
Wind speed: 45 m/s
Ambient temperature:
- 40 °C - +70 °C

Read moreShow less
Reference:
Description

Broadband, directional UMTS antenna


MECHANICAL PARAMETERS

Element material: copper
Reflector:
aluminium/copper
Radom material:
 ABS
Radom parameters:
347x132x75
Clamp:
wall-mounted
Antenna dimension:
347x132x75mm
Antenna weight:
>315 g
Wind speed: 45 m/s
Ambient temperature:
- 40 °C - +70 °C

Read moreShow less
Product Details

Data sheet

Frequency range
3G,4G
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
