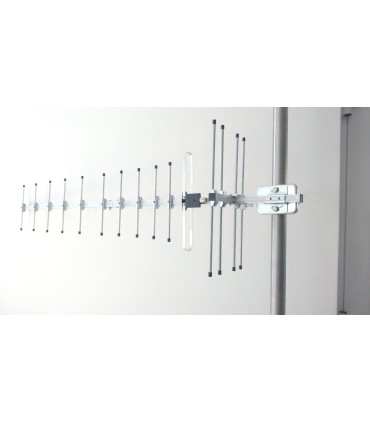

ACY12NE20

Directional antenna

MECHANICAL PARAMETERS


Support boom material: aluminium alloy
Element material: aluminium alloy
Reflector: aluminium alloy
Clamp: aluminium alloy
Antenna dimensions: 1405x420x410 mm
Antenna weight: >1200 g
Maximum wind speed: 25 m/s
Ambient temperature: - 40 °C - +70 °C

Read moreShow less
Reference:
Description

Directional antenna

Read moreShow less
Product Details

Data sheet

Frequency range
SRD
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
