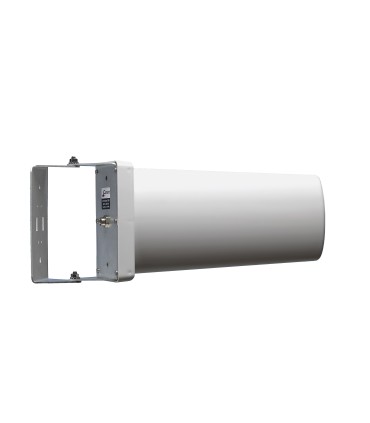

AGY10

Extended network range, simple installation

MECHANICAL PARAMETERS

Element material: copper
Reflector:
copper/aluminium
Clamp:
wall-mounted
Antenna dimension:
347x132x75mm
Antenna weight:
>315 g
Maximum wind speed
45 m/s
Ambient temperature:
- 40 °C - +70 °C
Radom material :
ABS
Radom parameters:
347x132x75
Beamwidth: ≤45 °

Read moreShow less
Reference:
Description
Extended network range, simple installation

The AGY10 high-gain directional antenna provides enhanced broadband directional RF radiation in various types of fixed wireless networks, including DCS1800, DECT and PCS1900. It is designed specifically to compensate for insufficient radio propagation.

The compact, lightweight AGY10 features an ABS radome. It can be installed on either a wall or a mast.
The antenna is easy to install and align, and the type of mounting does not affect performance
Carant antennas support all major standards used in fixed wireless networks.

Benefits
·         Compact dimensions, excellent performance
·         Fast,simple installation and alignment
·         Attractive, elegant design

Read moreShow less
Product Details

Data sheet

Frequency range
GSM1800
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
