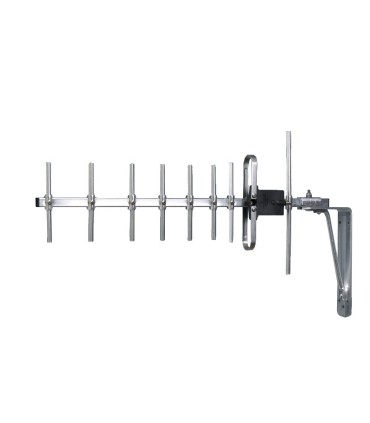

ABY9

Extended network range, long service life

MECHANICAL PARAMETERS

Support boom material: aluminium alloy
Element materialaluminium alloy
Reflector„C” element
Clamp: aluminium alloy
Antenna size535x175x40 mm
Antenna weight: >240 g
Ambient temperature:
- 40 °C - +70 °C
F/B ratio:
 >15 dB
Maximum wind speed25 m/s

Read moreShow less
Reference:
Description
The ABY9 directional antenna is designed for enhaced broadband directional RF radiation in the frequency range 800-960 MHz.
It meets rigorous criteria for high performance and extended operating range in fixed wireless networks.
Long service life is ensure by high-quality materials and a moulded watertight balun.
The Carant ABY series of outdoor wall-mounted antennas has been developed specifically for fixed wireless networks.
ABY antennas have demonstrated outstanding performance and reliability worldwide, in commercial networks from leading international suppliers of telecommunications equipment.
Carant antennas support all major standards used in fixed wireless networks.


Benefits


·         Excellent performance at very competitive price
·         Long service life
·         DC-grounding to protect subscriber equipment
·         Easily installed and aligned
·         Ready to use, no assembly required

Read moreShow less
Product Details

Data sheet

Frequency range
GSM900
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
