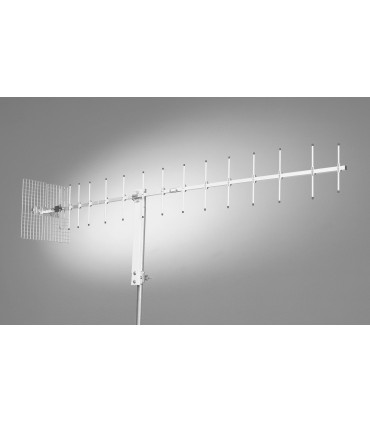

ACY16NE20

Directional antenna

MECHANICAL PARAMETERS

Support boom material: Aluminium alloy
Element material:
Aluminium alloy
Reflector:
Aluminium sheet
Clamp:
Galvanized steel
Antenna dimensions:
2350x420x420 mm
Antenna weight:
 >1750 g
Maximum wind speed:
 25 m/s
Ambient temperature:
- 40 °C - +70 °C

Read moreShow less
Reference:
Description

Directional antenna

Read moreShow less
Product Details

Data sheet

Frequency range
SRD
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
