OMNI2

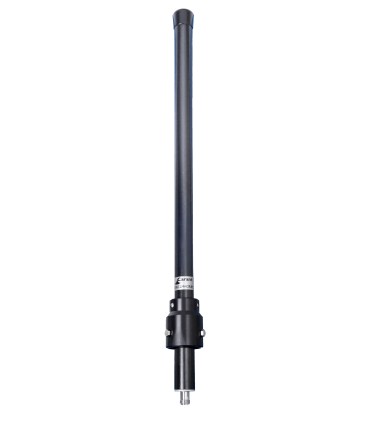

Omnidirectional outdoor antenna, 2dBi 380-475 MHz

MECHANICAL PARAMETERS

Radom material: Polyester-glassfiber composite, UV stable
Radom dimensions: d = 30 mm; l = 600 mm

Mounting bracket material: 45 mm diameter aluminium alloy

Antenna dimensions: 60x625 mm
Antenna weight: 600 g
Ambient temperature: - 40 °C - +80 °C
Element material: alumínium

Read moreShow less
Reference:
Description
Omnidirectional outdoor antenna, 2dBi 380-475 MHz

This robust antenna is designed for industrial use, and for hardly accessible places. Its weatherproof design guarantess long life and durability. It is suitable for transmitting data on water and sewage management, air quality measurement, and machinery automation, Frequency can be customized by request.

There is no need for additional mounting kit, the antenna easily slips into the mast, screws are attached for fixing.

·         Durability
·         All weather performance
·         Long service life
·         Easy to install
·         Aesthetics design
·         Frequency cusomization



Read moreShow less
Product Details

Data sheet

Frequency range
SRD
Type
Omni antenna
ELECTRICAL PARAMETERS
