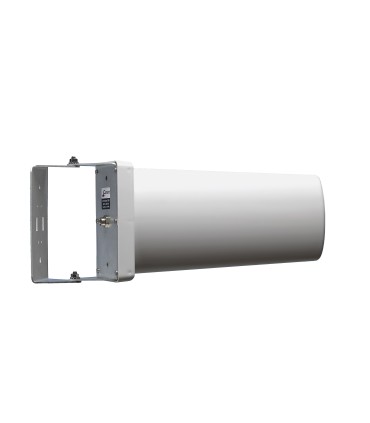

AGY11

High - gain, broadband, directional antenna


MECHANICAL PARAMETERS

Reflector: aluminium
Radom material:
 ABS
Radom dimension:
347x132x75
Clamp:
wall mounted
Antenna dimension:
347x132x75mm
Antenna weight:
>315 g
Wind speed: 45 m/s
Ambient temperature:
- 40 °C - +70 °C

Read moreShow less
Reference:
Description

High - gain, broadband, directional antenna

Read moreShow less
Product Details

Data sheet

Frequency range
WLAN/WIFI
Characteristic
Directional
Type
Yagi
ELECTRICAL PARAMETERS
